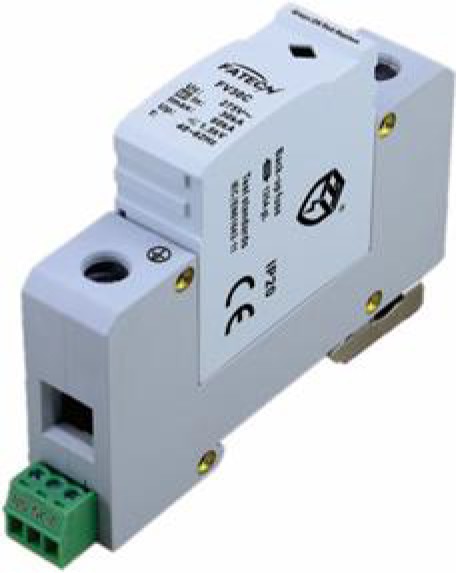

10kA surge protective device

Item No: FV10C/1-275
Class I, II / Type 1, 2 surge protective devices
For using in the lightning protection zones concept at boundary 1-2.
The core parts are metal oxide vristor components with high discharge capacity.
Reliable control thanks to Thermo Dynamic Control disconnector.
With remote signaling contact for control device.
Fault indication via red mark in the inspection window.
Protection mode --- L/N-PE.
Inquire  Back  PDF Download

Product Description

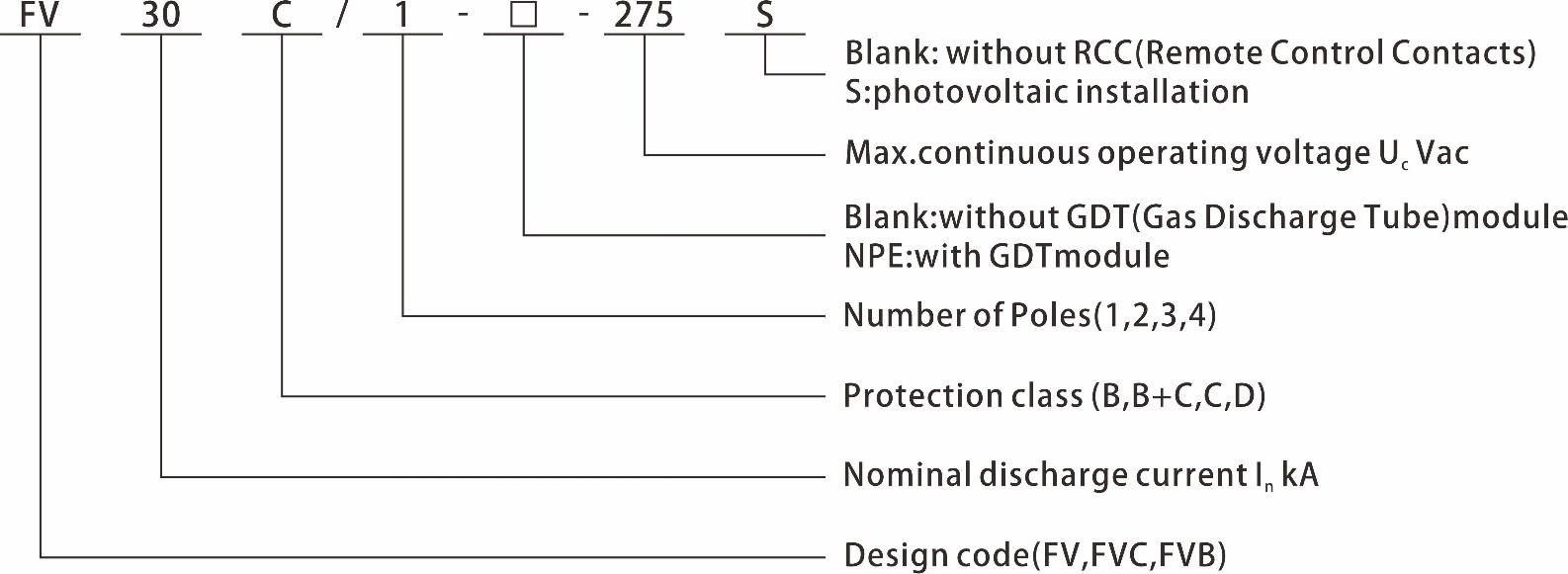

1.Coding system




2.Dimension and circuit of surge protective device FV10C/1-275



3.Electrical parameters of surge protective deviceFV10C/1-275
<
Model.No. FV10C/1-275
SPD protection conforms to IEC 61643-11 / EN 61643-11 Type1,2
SPD installation type conforms to IEC 61643-11 / EN 61643-11 Class I, II
Protection level conforms to DIN VDE0675-6 C
Type of Network TT ，TN ，I
Protection mode L/N-PE
Nominal Voltage UN 230Vac/50(60)Hz
Maximum continuous operating voltage UC 275Vac/50(60)Hz
Continuous operating current IC <20 µA
Residual current IPE ≤20 µA dc
≤500 µA ac
Standby power consumption PC ≤25 mVA
Maximum discharge current (8/20μs) Imax 25 kA
Nominal discharge current (8/20μs) In 10 kA
Voltage protection level Up ≤1.5 kV
Isolation resistance Risol ＞1000 MΩ
Response time tA ≤25 ns
Remote control contact YES
Disconnection indicator Mechanical indicator
(Green: OK, Red: Replace)
Minimum area of connecting cable 4 mm2
Maximum area of connecting cable 25 mm2
nstallation location Inside
Mounting type 35mm DIN rail acc. to EN 60715
Color Gray
Degree of protection IP20
Housing material UL94V-0
Ambient temperature -40°C ~+80°C
Altitude ≤2000 m (amsl (above mean sea level))
Permissible humidity 30%~90%


4.Installation of surge protective device FV10C/1-275
