3 poles 50kA Type 1 lightning arrester

Item No: FV50B/3-xxx S
- 3 poles 50kA Type 1 lightning arrester
- With indication window and remote control contacts,
- Unique designing, patent technology,
-Used in the lightning protection zones concept at boundary LPZ0B-LPZ1,
-The core parts are multilayer spark gap with high discharge capacity,
-35mm2 DIN-rail in accordance with EN 50022/DIN46277-3,
-Low residual voltage.
-Protection mode: L1, L2, L3-PE.
Inquire  Back  PDF Download

Product Description

10/350us 50kA test video (FV50B/1-275S), please click here

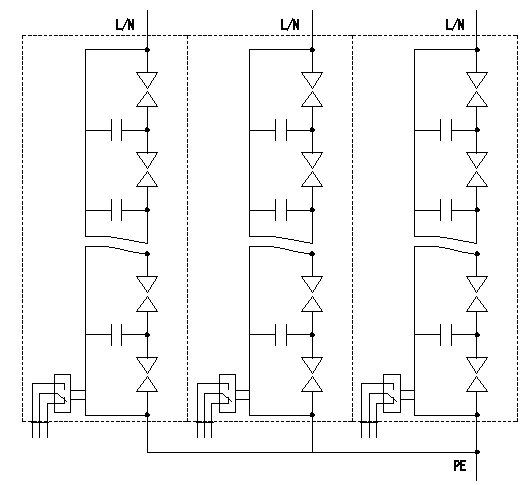

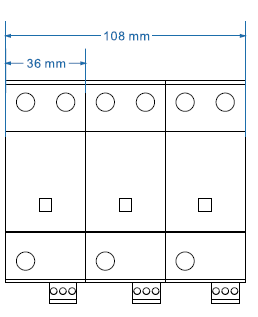

1.Dimension of surge arrester FV50B/3-xxx S



2.Electrical parameters of surge arrester FV50B/3-xxx S

Model No. 　 FV50B/3-150S FV50B/3-255S FV50B/3-275S FV50B/3-320S FV50B/3-385S
Test class IEC/EN/VDE Class I / B /T1
Type of Network TT-TN-IT
Nominal voltage UN 110/220V 220/380V
Rated Voltage (Max. Cont. Operating Voltage) Uc 150VAC 255VAC 275VAC 320VAC 385VAC
Impulse current (10/350μs) Iimp 50kA 50kA 50kA 50kA 50kA
Nominal discharge current (8/20μs) In 50kA 50kA 50kA 50kA 50kA
Voltage protective level Up ≤1.8kV ≤1.8kV ≤1.8kV ≤2.0kV ≤2.0kV
Isolation resistance Risol >102MΩ >102MΩ >102MΩ >102MΩ >102MΩ
Response time tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
Recommended back-up fuse 500A
I/O Connections L-N: Multi core wire:10-35mm2
PE: Multi core: > 16mm2
Mounting 35mm Symmetrical rail (EN50022/DIN46277-3)
Operation temperature range / humidity / altitude -40℃~+80℃/30%~90%/3000m
Degree of protection IP20
Encapsulated Encapsulated
Housing material UL94V0
Disconnection indicator Mechanical indicator (Green: OK, Red: replace)
Remote control contact Yes
Color gray

3. Test record photo



10/350us 50kA test video (FV50B/1-275S), please click here
