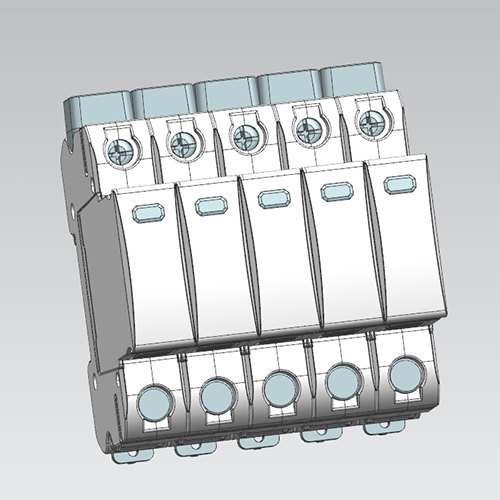

Multi-pole connection surge suppressor for photovoltaic systems

Item No: FV05B+C/5Y-1000PVNS

ØDC surge Protective device specially used for photovoltaic system less than1000Vdc.

ØThe core parts are metal oxide vristor components with high discharge capacity.

ØWithreliable control thanks to Thermo Dynamic Control disconnector.

ØWithoutremote signaling contact for control device.

ØFault indication via red mark in the inspection window.

Product Description

1.Coding

2. Dimension

3. Circuit

4. Electrical parameters

Model. No.	FV05B+C/5Y-1000PVNS
SPD protection conforms to EN50539-11/IEC61643-31	Type 1+2
SPD installation type conforms to EN50539-11/IEC61643-31	ClassI+II
Protection level conforms to DIN VDE0675-6	B+C
Type of Network	Photovoltaic systemsDC side
Protectionmode	(+)-PE , (-)-PE，(+)-(-)
Nominal Voltage U_N	1000 Vdc
Maximum continuous operating voltage for PV application U_CPV	1000Vdc
Continuous operating current I_CPV	<20 µA
Residual current I_PE	≤20 µA DC ≤500 µA AC
Standby power consumption P_C	≤25 Mva
Nominal discharge current (8/20μs) I_n	20kA
Impuse discharge current (10/350μs) I_imp	5kA
Total Impuse discharge current (10/350μs) I_total	10kA
Short-circuit current rating I_scpv	100A
Voltage protection level U_p	≤3800 kV
Isolation resistance R_isol	＞1000 MΩ
Response time t_A	≤25 ns
Remote control contact	YES
Disconnection indicator	Mechanical indicator (Green: OK, Red: Replace)
Minimum area of connecting cable	6 mm²
Maximum area of connecting cable	35 mm²
Installation location	Inside
Mounting type	35mm DIN rail acc. to EN 60715
Color	Gray
Degree of protection	IP20
Housing material	UL94V-0
Ambient temperature	-40°C ~+80°C
Altitude	≤2000 m (amsl (above mean sea level))
Permissible humidity	30%~90%

5. Installation
