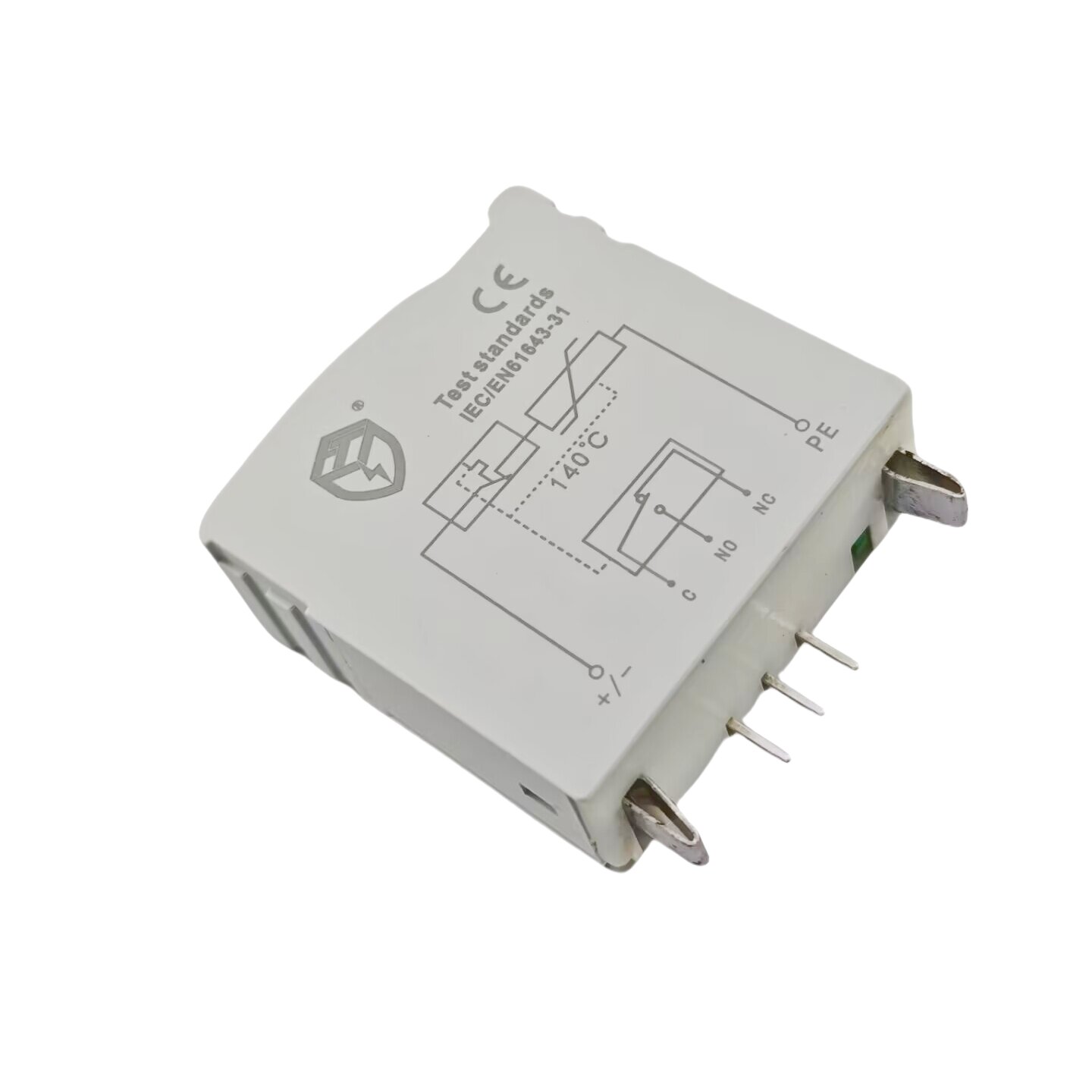

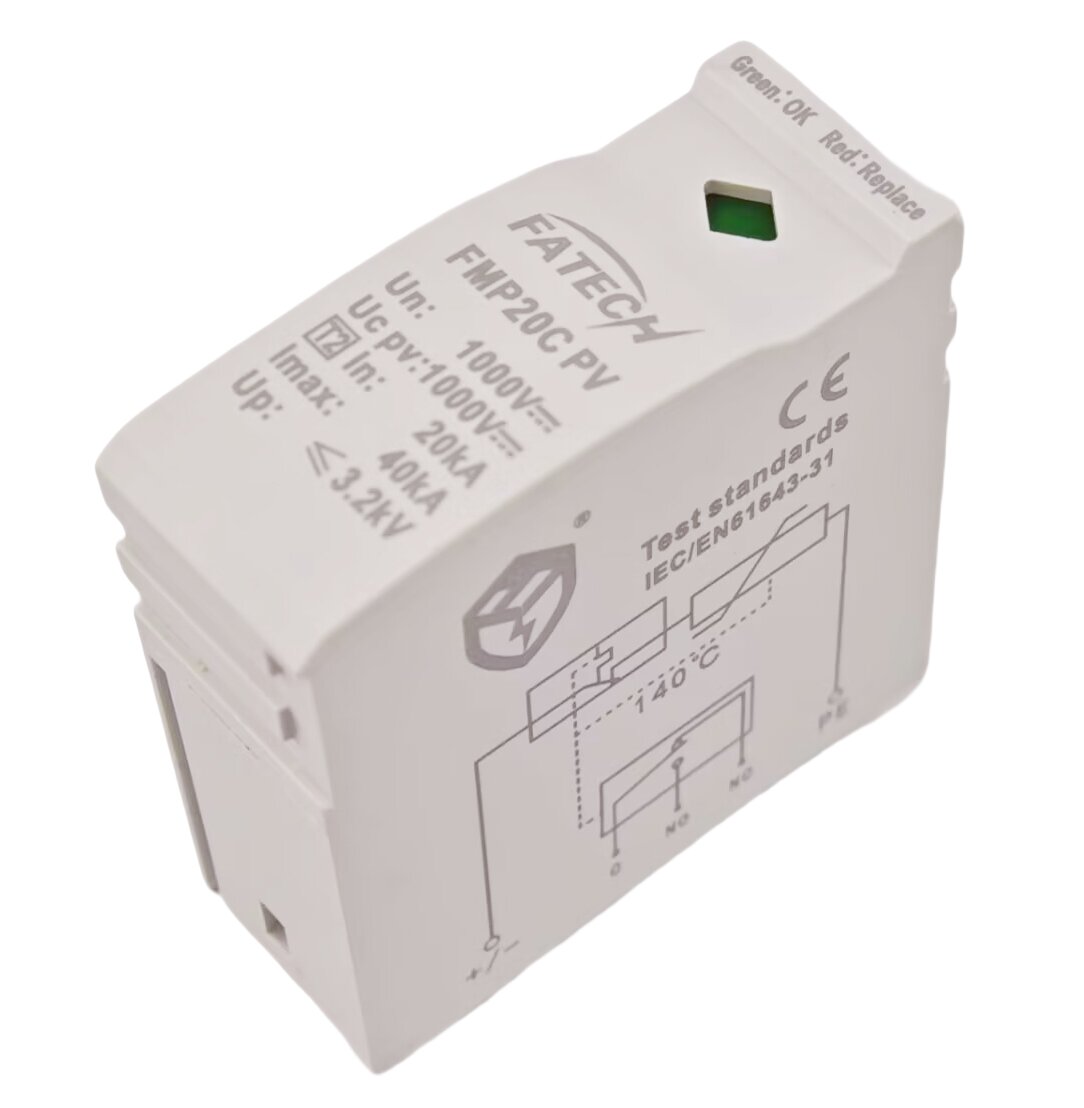

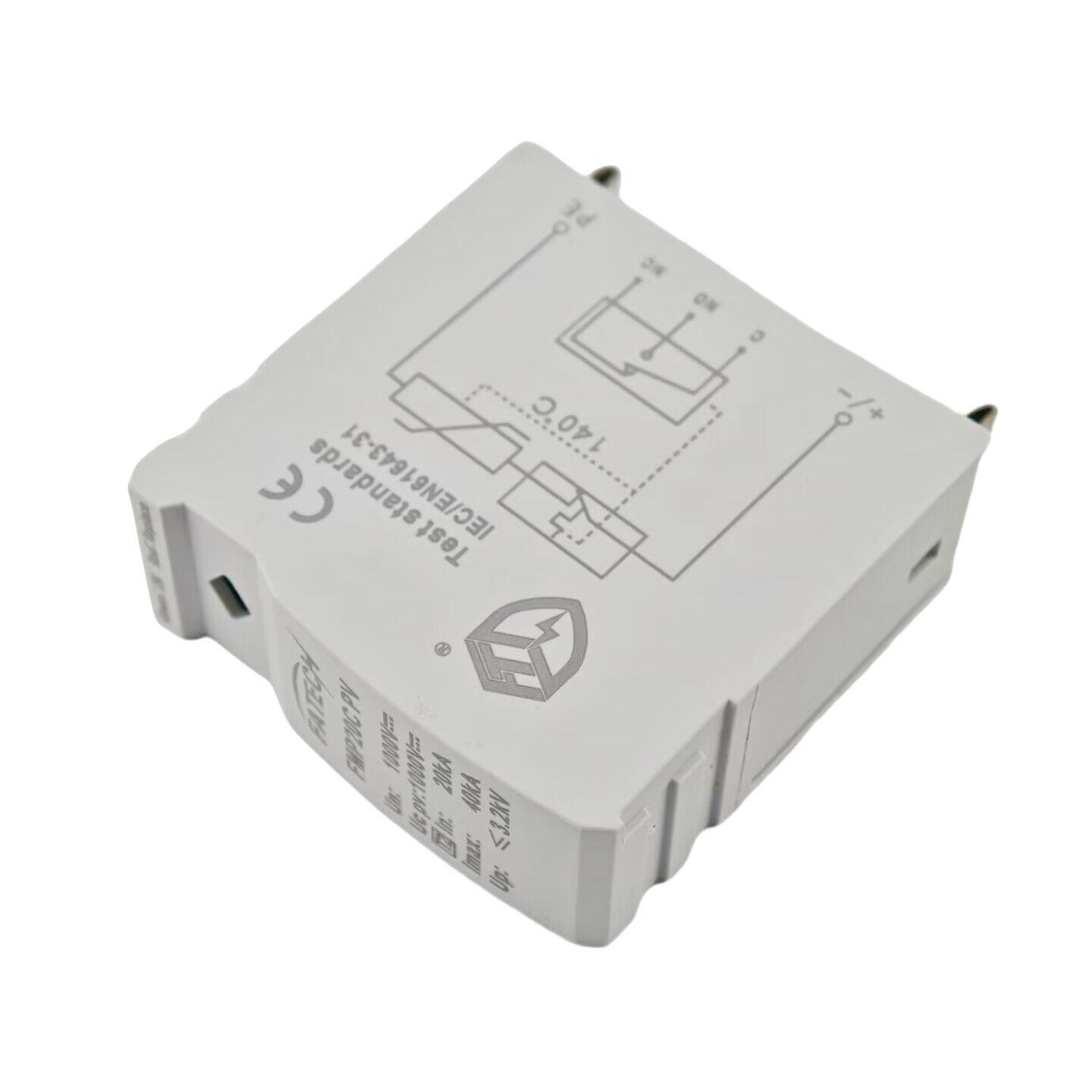

PCB type 40kA DC surge protector

Item No: FMP20C-1000PVS
1. Power Lightning Protection Module specially used for photovoltaic system less than 1000Vdc.
2. The core parts are metal oxide vristor components with high discharge capacity.
3. With reliable control thanks to Thermo Dynamic Control disconnector.
4. With remote signaling contact for control device.
5. Fault indication via red mark in the inspection window.
6. High energy Imax 40kA.
Inquire  Back  PDF Download

Product Description

1.Coding

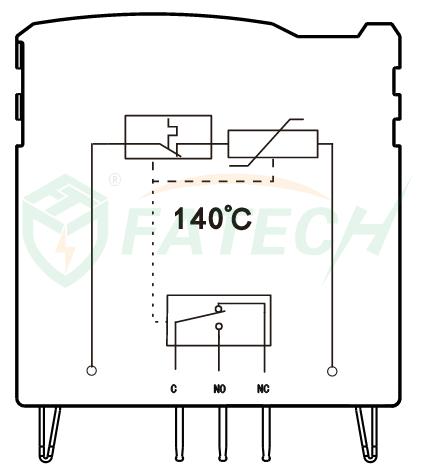

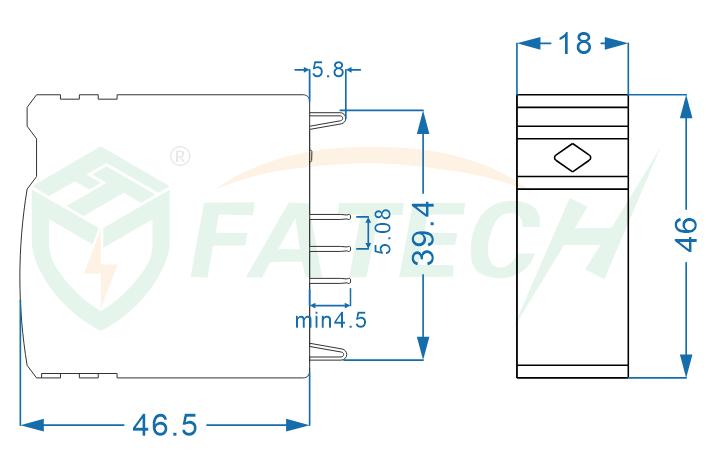

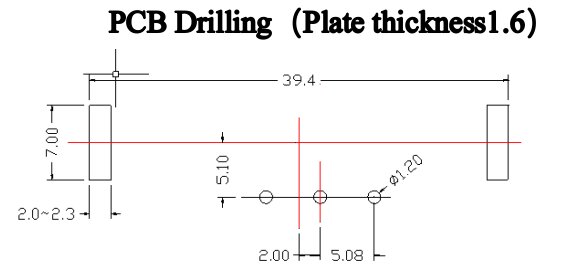

2. Dimension & Circuit

4. Electrical parameters

Model. No.

FMP20C-1000PVS

SPD protection conforms to EN50539-11/IEC61643-31

Type 2

SPD installation type conforms to EN50539-11/IEC61643-31

ClassII

Protection level conforms to DIN VDE0675-6

C

Type of Network

Photovoltaic systemsDC side

Protectionmode

(+/-) -(-/+) ,(+/-)-PE, (-/+)-PE

Nominal Voltage UN

1000Vdc

Maximum continuous operating voltage for PV application UCPV

1000Vdc

Continuous operating current ICPV

<20 µA

Residual current IPE

≤20 µA dc

≤500 µA ac

Standby power consumption PC

≤25 mVA

Maximum discharge current (8/20μs) Imax

40 kA

Nominal discharge current (8/20μs) In

20 kA

Voltage protection level Up

≤3.2 kV

Rated short-circuit current for photovoltaic applications - Iscpv

50A

Isolation resistance Risol

＞1000 MΩ

Response time tA

≤25 ns

Remote control contact

YES

Disconnection indicator

Mechanical indicator

(Green: OK, Red: Replace)

Alarm device

Optional normally open or normally closed

Installation location

Inside

Mounting type

PCB Board Welding

Color

Gray

Housing material

UL94V-0

Ambient temperature

-40°C ~+80°C

Altitude

≤2000 m (amsl (above mean sea level))

Permissible humidity

30%~90%
