Signal Surge Arresters FS-SC-5/10

FS-SC-5/10


-Screw Clamping data signal arrestersare applied to the surge protection for telecommunications, e.g. SPC exchangers, twisted pairs of telephone stations, dial-up lines, DDN special line.
-Rated voltage 5V, Uc 8V, Imax 10kA
-Convenient mounting
-Class C surge protection, low residual voltage
- Built-in semiconductor, quick response
-Low capacitance design, excellent transmission
-Can be designed and manufactured according to special requests of clients.

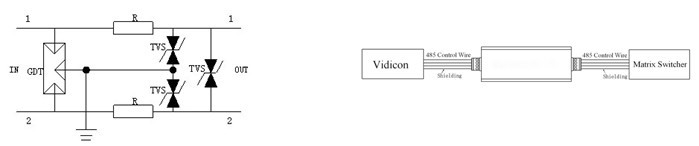

1.Dimension and circuit diagram of data surge arrester FS-SC-5/10




2.Electrical parameters of data surge arrester FS-SC-5/10

Model No.     FS-SC-5/10
Rated voltage Un V 5
Max. cont. operating voltage Uc V 8
Rated current IL   mA 500
Nominal discharge current (8/20μs) In kA 5
Max. discharge current (8/20μs) Imax kA 10
Voltage protection level(1.2/50μs) L/L V ≤ 20
Voltage protection level(1.2/50μs) L/PE V ≤ 250
Adapt transmission rate Bit/s M 10
Insertion loss dB   ≤ 0.4 (100M)
Interface (In/Out)   Screw Clamping
Protected line (Pairs)     One
Response Time L/L ns ≤10
Response Time L/PE ns ≤10
Enclosure color Black
Dimension   mm 25×25×86
Testing standard IEC 61643-21:2000
